CNC Electric-hydraulic proportion press brake configuration:
1.1.CNC system: Holland DA66T control 6+1 axes(Y1,Y2,X,R,Z1,Z2+V)
1.2.Hydraulic system:original Hoerbiger or Rexroth Germany.
1.3 Grating ruler:GIVI,Italy
1.4 Motor:Siemens, Germany.
1.5 Pump:SUNNY, USA
1.6 Electrical element:Schneider.
1.7 Servo motor and driver:DELTA,TAIWAN or Mitsubishi, Japan
1.8 Toolings:upper tools fast clamping and with compensate, lower tool with multi V or single .Segmented tools according to your requirement.
1.9 Seal ring: NOK,Japan.
1.10Front support with table, it can move right and left.
1.11Lower-table mechanical crowning or cylinder crowning mechanism by controlled CNC.
1.12.With safety side doors and back doors.
1.13.Hydraulic system with security valve, with spool position and manometer
1.14With All Security equipment monitored.
Machine features
◇ Machine adopt wholly welding structure, the main parts annealing treatment, releasing internal stress.
◇ The frame and ram are processed at one time completely by heavy duty boring and milling machine.
◇ Big daylight, high ram speed
◇ Ram with fast clamping for up tooling, hydraulic crowning device on working table
◇ Advanced wholly back gauge, X axis, R axis, Z1 and Z2 with high speed, high precision.
◇Standard configuration DA52S from Holland.
◇ Hydraulic system adopts Germany electric- hydraulic proportional system.
Optional
◇ CNC controlling front supporter
◇ Multi-axises control, Max. 16 axises
◇ Laser safe protection
◇ Bending angle automatic detection
◇ Hydraulic clamp for upper tool
◇ Mechanical crowning on working table
◇ Special tools
CNC axis function
◇ Y（Y1、Y2）axis: ram synchronous control axis, controlling bending depth and angle control.
◇ X（X1、X2）axis: Control for back gauge front-back stroke, using controlling bending flange size
◇ R（R1、R2）axis: Control for back gauge beam up-down
◇ Z（Z1、Z2）axis: Controlled back gauge finger left-right movement.
◇ V axis: Working table auto-hydraulic crowning control
Simulation model engineering and optimization are with famous ANSYS non-linear software(Unique design).

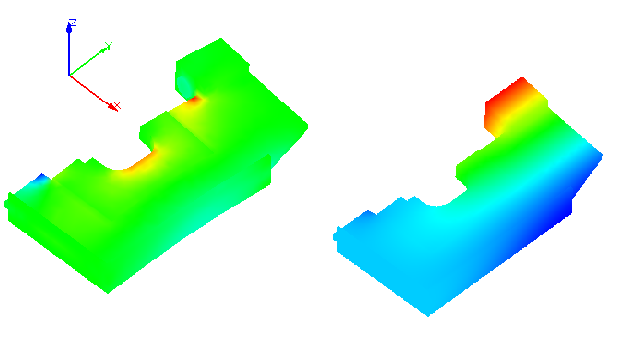

Fig.1 Upright

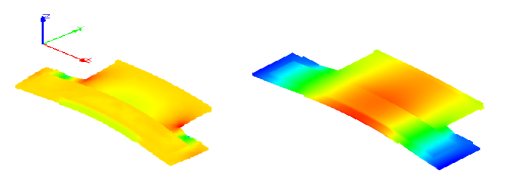

Fig.2 Working table

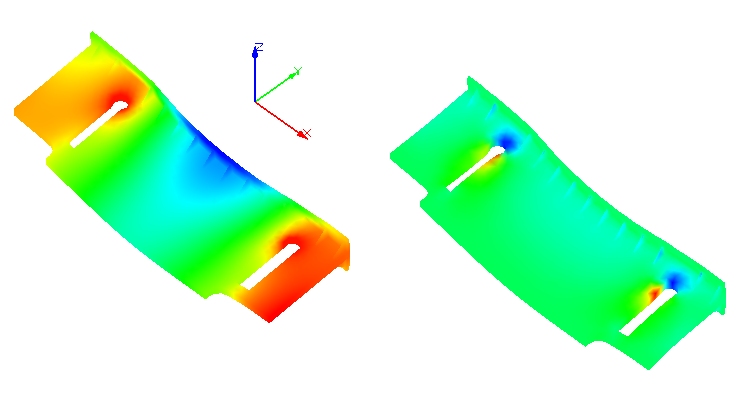

Fig.3 Ram
2.Main Specifications
No | Name | Unit | Parameter | |
|---|---|---|---|---|
1 | Nominal pressure | KN | 630 | |
2 | Working table length | mm | 2500 | |
4 | Center distance between uprights | mm | 2000 | |
5 | Throat depth | mm | 320 | |
6 | Ram stroke | mm | 160 | |
7 | Max. open height | mm | 400 | |
8 | Ram speed | No-loading speed | mm/s | 200 |
Working speed | mm/s | 8-10 | ||
Returning speed | mm/s | 150 | ||
9 | Main motor | Power | KW | 7.5 |
10 | CNC system | Type | Cell | DA66T |
CNC axes | axis | Y1，Y2，X,R,Z1,Z2+V | ||
Quantity | 1 | 1 | ||
11 | Weight | KGS | 5500 | |
12 | Back-gauge accuracy | mm | ±0.05㎜ | |
13 | X-axis Back-gauge Travel | mm | 600 | |
Back-gauge speed | mm/s | 300-500 | ||
14 | Work-piece straightness | mm | 0.25 /m | |
15 | Bending angle accuracy | (ʹ) | ±<0.5˚ | |
16 | Sliding Front Arms | Pics | 2 | |
17 | Back-gauge Finger Block | Pics | 4 | |
18 | Crowning System | Cell | Mechanical crowing | |
Safety configuration | ||||
19 | Warning of high oil temperature | ■Yes | □No | |
20 | High oil pressure protection | ■Yes | □No | |
21 | Motor overload protection | ■Yes | □No | |
22 | Laser Safety Protection | ■Yes | □No | |
23 | Left & Right side protection | ■Yes | □No | |
24 | Electricity leakage protection | ■Yes | □No | |
25 | Safety Relay | ■Yes | □No | |
26 | Monitoring and Redundant valves | ■Yes | □No | |
28 | Safety standards | ■UL | □No | |
ER80 CNC PRESS BRAKE ROBOT
3.Working system
3.1system introduction
Plate size：≤2900x1250
Plate weight：≤40kg

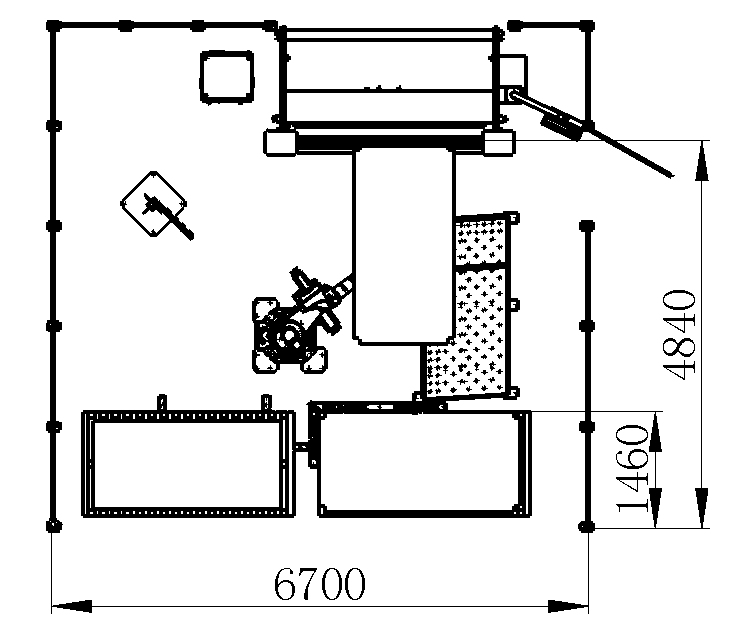

Layout
3D Show
3.3Description of process flow

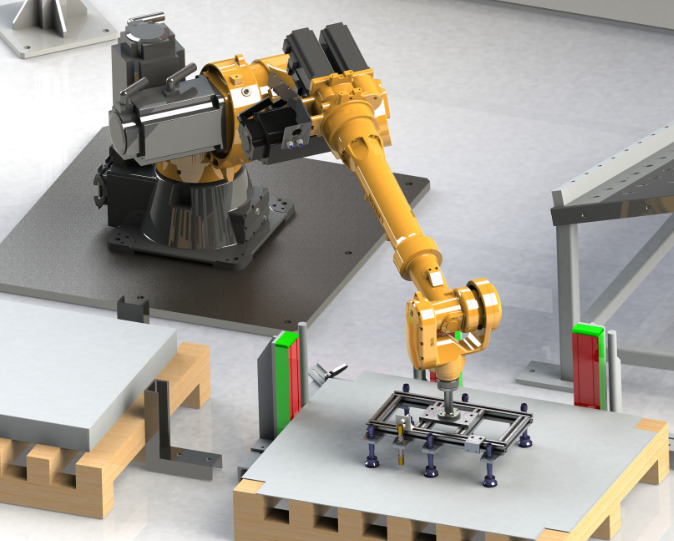

The robot grabs the material from the loading area
The robot grabs the plate and puts it on the center platform

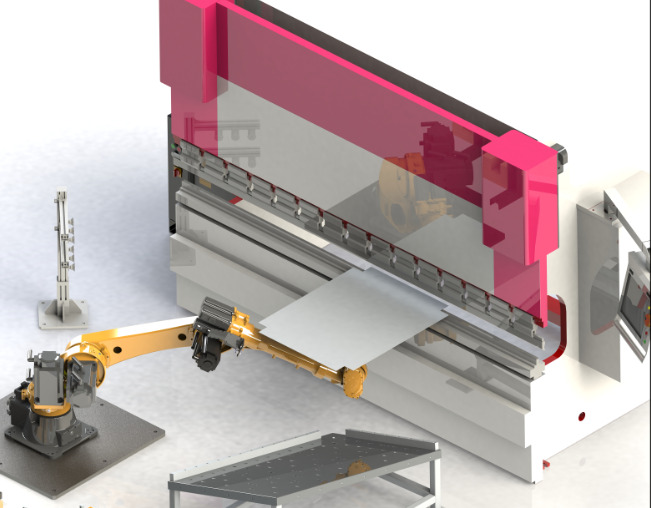

The robot grabs the plate material (short side) and the backstop finger system is automatically aligned
The robot grabs the sheet metal bending machine and follows it to bend the short side
The robot grabs the material and turns the surface by means of an overturning rack
The robot grabs the plate material (long side) and the backstop finger system is aligned automatically
The robot grabs the plate bending machine and follows the long side bending
The robot run feeding area
No. | Name | Model | Factory | Q’ty |
|---|---|---|---|---|
1．Robot | ||||
1 | ERB80 | Robot body, electrical control cabinet, connecting cable, etc. Control system, ESTUN teaching box and software, etc. | ESTUN | 1 |
2 | 《Smart Robot Bending》V3.2 | Robot bending software: bending follow-up, split stacking, rear block closed loop control, bending system communication control, etc. | ESTUN | 1 |
2．Robotic gripper system | ||||
1 | Robotic gripper system | Non-standard customization (including imported suction cup / electromagnetic chuck, vacuum generator, empty board inspection, etc.) | VETC | 1 |
Remarks: The conventional sheet material is a solid carbon steel plate, which can be used with ordinary grippers; other solid sheet grabs such as stainless steel and aluminum sheets are mechanically divided and the cost is increased. | ||||
3．Centering system | ||||
1 | Centering system | Non-standard customization (ball positioning, optional visual alignment) | ESTUN | 1 |
4．Back-gauge finger automatic alignment system | ||||
1 | Back-gauge finger automatic alignment system | Non-standard customization (including high precision sensor) | ESTUN | 2 |
5．Loading and unloading system | ||||
1 | Loading system | Loading table positioning, loading sheet material detection, magnetic separator | ESTUN | 1 |
2 | Unloading system | Unloading platform positioning | ESTUN | 1 |
6．Turnover transposition system | ||||
1 | Turnover transposition system | Non-standard customization (including imported suction cup / electromagnetic suction cup, straight tube type vacuum generator, solenoid valve, etc.) | VETC | 1 |
7．Safety system | ||||
1 | Safety protection system | Fence, safety light curtain, tricolor lamp | ESTUN | 1 |
8．System control | ||||
1 | Control system | PLC，Button box etc. | ESTUN | 1 |
Note: The above configuration is for reference only. The specific configuration is subject to the technical agreement. | ||||
4.2Gripper system icon
4.3Automatic alignment system icon
4.4Turnover transposition system icon
5.ER80Robot specification
5.1 Robot ER80 Specification
Name | ER80 | |
Action type | Polyarticular | |
Control axis | 6 | |
Placement method | Floor | |
Maximum joint speed | J1axis | 110°/sec |
J2axis | 105°/sec | |
J3axis | 130°/sec | |
J4axis | 215°/sec | |
J5axis | 160°/sec | |
J6axis | 205°/sec | |
Maximum range of motion | J1axis | ±180° |
J2axis | +150°/-67° | |
J3axis | +66°/-190° | |
J4axis | ±170° | |
J5axis | ±130° | |
J6axis | ±360° | |
Maximum radius of motion | 2.9m | |
Wrist maximum allowable load | 80Kg | |
Repeatability | ±0.1mm | |

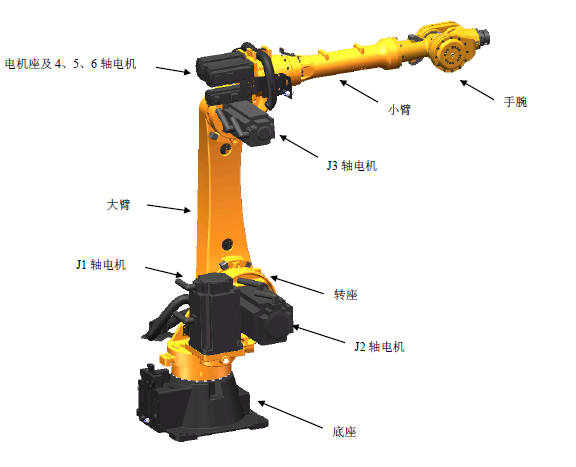

5.2Mechanical system structure
The robot mechanical system is mainly composed of a mechanical body and a peripheral pipeline package. The mechanical body is mainly composed of a base portion, a large arm portion, an arm portion and a wrist portion.
5.3Rotor positive and negative range of each joint of the robot
Model | Each axis rotation range | |||||
J1axis | J2axis | J3axis | J4axis | J5axis | J6axis | |
ER30 | ±180° | -67°~+150° | -190°~+66° | ±170° | ±130° | ±360° |

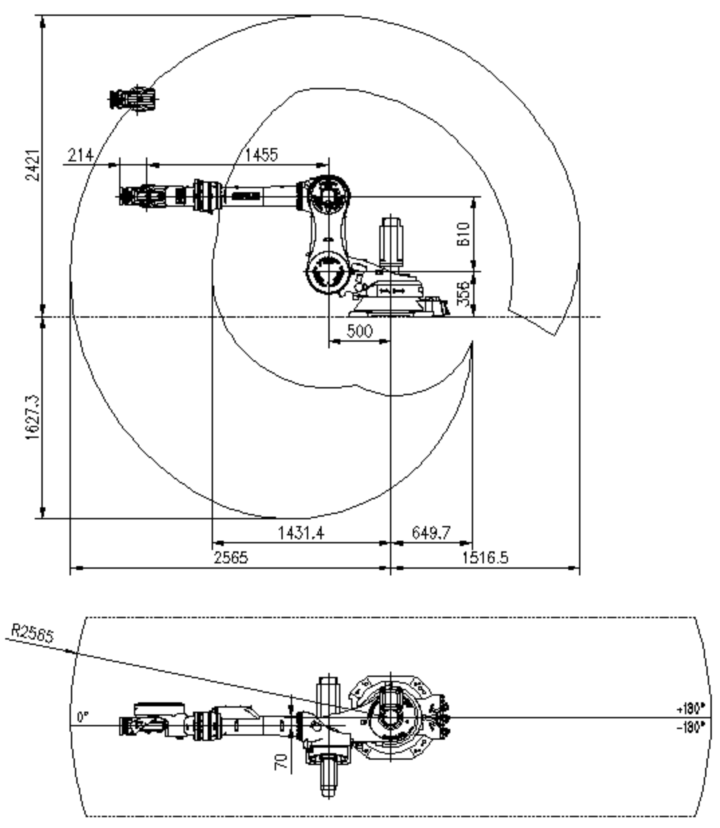

5.4Robot working envelope diagram

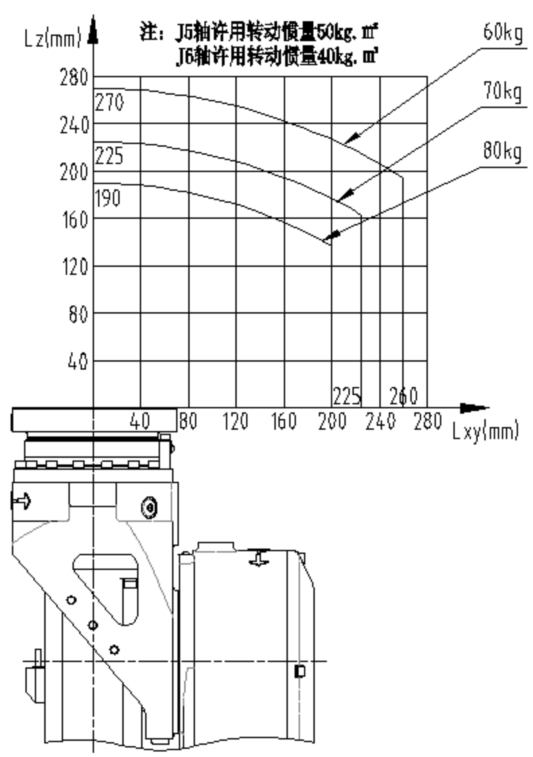

5.5Robot load curve
Overview: Any load applied to the robot must follow the robot load map to avoid unstable operation of the robot, motor, reducer, and structural overload.
The load loaded by the ERB80 robot must conform to the ERB80 robot load curve. The mass of the load and its own inertia must be confirmed under various conditions. Overloading will overload the motor and reducer, shortening the life of the robot, and serious damage to the robot.
5.6Robot system composition description
The robot system is mainly composed of three parts: the robot body, the control cabinet and the teaching device.
5.6.1Robot body:
ØESTUN robot dedicated high performance servo
ØHigh quality castings
ØJapan Nabtesco reducer
Calibration of the calibrator before leaving the factory
120 hours without stopping the test before leaving the factory
5.6.2Cabinet
New electric cabinet, smaller and compact
EtherCAT bus
Extensible multi-axis control
Customized integration of engineering electrical integration according to application needs
5.6.3 Demonstrator
Ergonomically designed for comfortable operation and light weight
All Chinese display, friendly interface
7” vertical screen for more information
Two-way safety switch to ensure the safety of personnel operation
Equipped with USB interface to support import/export of teaching programs
