Procurement Plan for Fully CNC Automatic tools exchange press brake machine

Model:HD1103 9+1 Axis - CT12

Starting from the production of press brake,shearing machine,and CNC V-groove machines, our company has continuously innovated and become a leading comprehensive sheet metal equipment designer and manufacturer in China, committed to provide customers with complete sheet metal processing solutions.

Every member of our company upholds the same belief: dedicated to helping customers solve processing challenges, meticulously crafting the finest equipment and innovative sheet metal processing solutions to meet the high-standard requirements of modern manufacturing.

Through our communication, we believe the contents of this technical documentation will be beneficial to your company.You may select the following machine specifications to satisfy your bending processes requirements.

Based on your product requirements, the primary machine model is:HD1103 9+1 Axis ( Y1, Y2, X, V, R, L1, L2, L3, L4, L5 Axes ) — Quantity: 1 Set

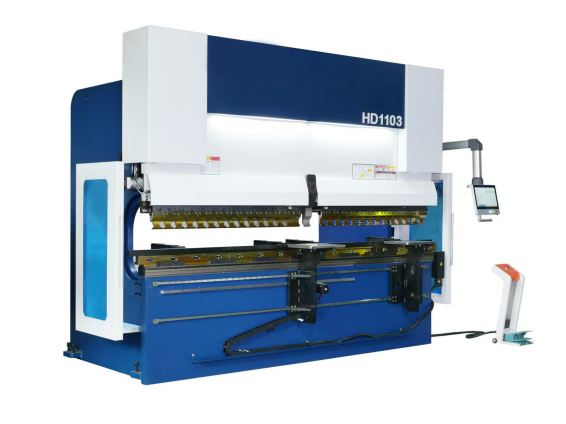

I.Machine Appearance/Name/Model:

(The machine photos below are for reference only and may differ from the actual quoted machine.)

1. Machine Name:Fully CNC Automatic Punch Sorting Press Brake

2. Model:HD 1103 11+1 Axis-Windows -ET15 (Y1 , Y2, X , V, R, L1, L2 , L3 , L4, L5 Axes)

3. Axis Description

Y1 - Y2 Axes:Ram pressure control axes

X Axis:Back gauge positioning travel control axis

V Axis:Crowning compensation control axis

R Axis:Back gauge vertical lifting control axis

L1 Axis:Left punch selection axis

L2 Axis:Right punch selection axis

L3 Axis:Center punch quantity selection axis

L4 Axis:Center punch flipping axis

L5 Axis:Front sheet support positioning axis (optional)

II.Machine Anti-Eccentric Load Capability:

The electro-hydraulic servo system of this machine is a position system.Linear scales dynamically detect synchronization errors of the ram.The CNC system outputs correction signals to the electro-hydraulic servo valves to compensate for synchronization errors, ensuring the ram remains parallel to the worktable even under full eccentric loading conditions.

III.Main Technical Parameters:

IV.Functions of CNC Axes:（Total 10 Axes:Y1 ，Y2 ，X， V， R， L1 ， L2 ， L3 ， L4， L5)

1.Ram Synchronization Control — Y1/Y2 Axes

Y1 and Y2 are the independent movement parameters of the two hydraulic cylinders controlled by the CNC system.Two linear scales (Y1 and Y2)are installed at both ends of the machine. They are used to determine the exact distance between the ram and the worktable. The linear scales are connected to the worktable, eliminating the influence of housing deformation on the ram position.During ram movement, position data is immediately fed back to the CNC system, which then calculates and outputs servo valve control signals (S1–S2) to control the output flow of the two electro-hydraulic servo valves, ensuring the synchronization of the two cylinders.

2.X Axis

The back gauge positioning travel control axis. Driven by an imported servo motor through a synchronous timing belt pulley and ball screw. The back gauge fingers remain synchronized, providing stable transmission, high precision, and low noise. The fingers are divided into four levels, enabling bending of wider sheets and providing material support.

3.R Axis:

Back gauge lifting control axis.Controlled by an imported servo motor,it can automatically adjust the height of the back stopper according to the workpiece requirements,improving work efficiency and enabling the completion of special workpiece.

4.L1 Axis:

It is the left punch section axis.

5.L2 Axis

It is the right punch selection axis.

6.L3 Axis

Center punch quantity selection axis.

7.L4 Axis

Center punch flipping.

8.L5 Axis

Front sheet support positioning.

V.CNC Axis Accuracy (The following accuracy is the factory acceptance requirement, with dial indicator as the inspection tool)

VI.Mechanical Crowning Automatic Compensation System

The mechanical crowning automatic compensation system effectively compensates for the deflection of the worktable during operation.The compensation principle is as follows:

VII.Product Structural Design:

1.Fully welded steel plate structure with high rigidity.

2.Structural components are derusted by sand blasting and coated with anti-rust paint.

3.The machine housings, upper ram, and lower worktable are machined in a single setup on a floor-type boring and milling machine, ensuring the parallelism and perpendicularity of all mounting surfaces.

Floor-Type Boring and Milling Machine

4.Upward-moving bending design ensures stable operation, convenient use, and safety.

5.Features a pressure holding dwell function at the bottom dead center to ensure workpiece accuracy.

6.Under relevant national standard conditions, bending angle accuracy can reach ±30′.

7.The machine ram undergoes overall annealing in a furnace to eliminate internal stress,enduring good long-term accuracy retention.

VIII.Machine Ram Structure:

1.Upward-moving bending design ensures stable operation, convenient use, and safety.

2.Features a pressure holding dwell function ensures workpiece accuracy.

3.Large ram stroke; parallelism tolerance between the two sides is 0.02mm.

4.The measurement system connects two independent linear scales to a C-shaped auxiliary bracket which is integrated as one piece with the lower bed of the machine. This eliminates the influence of frame deformation on the absolute measurement of the stroke distance between the upper and lower tools.

5.Guiding of the upper ram: Our company’s upper ram is taller than that of typical manufacturers, and runs on the outer guide rail of the frame throughout its full stroke.

IX.Hydraulic System:

1.Employs imported synchronous servo valve groups specially designed for press brakes, featuring fast response efficiency and extremely high synchronous control precision

2.The hydraulic system is built as a single manifold block, avoiding excessive pipeline connections and improving rigidity of the hydraulic system. Equipped with overload relief safety protection and a clear, intuitive oil level height display. The machine can operate continuously under rated load. The hydraulic system has no leakage, is continuously stable, and has high precision.

3.Built-in large-diameter pre-fill valves ensure fast speed and low power loss.

4.Utilizes imported internal gear high-pressure hydraulic pumps,featuring high-pressure resistance, low pulsation, and low noise.

5.Cylinder seals employ imported sealing elements with a multi-guide structure. This ensures even force distribution, many years of trouble-free operation, low wear, and no leakage. The cylinder body inner surface undergoes fine honing, while the piston rod outer surface is processed with hard chrome plating, precision grinding, and micro-polishing, achieving a precision of 0.2 microns. This significantly extends the service life of the seals and cylinders.

6.The machine can operate continuously under rated load.The hydraulic system has no leakage, is continuously stable, and has high precision.

X.Electrical Control System:

1.Key electrical components adopt international renowned brands, complying with international standards for safety, long service life, and strong anti-interference capability.

2.The electrical cabinet is equipped with a ventilation and heat dissipation device to regulate the temperature inside the cabinet, ensuring the normal operation of all electronic components.

3.The movable operator station can be moved to the middle of the machine, making it convenient for the user to operate. It is also equipped with an emergency stop function on the station, greatly improving the safety performance of the machine.

XI.CNC System: Windows-ET15 CNC System Standard Functions:

A new generation touched-screen CNC system, providing more efficient programming, operation, and control for today’s press brake. Combined with modern advanced process technology, operation is more convenience, improving productivity.

>   High-definition industrial touch pantalla LED Long-life, low-power, backlight

>  Human machine dialogue, intelligent prompts, convenient, easy to understand, ready to learn and apply immediately

>  Multi-axis linkage graphical display programming and operation, simply input the workpiece forming information and processing steps, the system automatically calculates X axis back gauge and R axis positioning values(automatically deducts elongation etc.)

>  Electro-hydraulic proportional and servo motor control, smooth running speed, fast response speed, high precision, greatly improving efficiency

>  3D graphic bending, power-off position memory function, protecting parameters, positions and programs

>  Configurable automatic return to reference point on startup, dual display with large icons and Chinese characters

>  Interconnection, software upgrade and data backup

>  Online help and interactive pop-up alarm prompt dialog boxes

>  Intuitive and user-friendly interface

>  Multiple languages available

>  Multi-step programming function, can realize multi-step automatic operation, completing multi-step parts parts in one setup

>  Interfaz USB

>  Pressure-crowning compensation automatic calculation

>  Upper punch depth automatic calculation

>  Angle and back gauge correction

>  Bending data automatic calculation

>  Bending program storage

> Remote assistance for updates, remote upgrade and maintenance

XII.Imported Machine Components Configuration

XIII.Equipment Accuracy and Product Standards:

1.Product Standard: National Standard GBT33644-2017CNC Press Brake Accuracy

2.Machine Accuracy:

2.1 Y1 ，Y2 Axis Positioning Accuracy: 0.02mm

2.2 Y1 ，Y2 Axis Repeat Positioning Accuracy: 0.02mm

3.Working Accuracy:

3.1 Test Piece Bending Straightness: 0.2mm/m

3.2 Test Piece Bending Angle: ±30’

3.3 Test Piece Requirements: Material is Q235-A cold-rolled steel plate, with tensile strength σb≤450MPa; Plate thickness 2 mm; The test piece must be sheared blank; The opening size of the lower die used for the test is 8~10 times the thickness of the test piece; The test piece bending angle is 90°; Measurement starts from 100 mm from the end of the test piece.

XIV. Working Environment Conditions:

1.Environment Temperature: 0-40℃

2.Environment Humidity: ≤90%

3.Voltage: Three-phase AC380V±10%, 50Hz

4.Requires the use of No. 46 anti-wear hydraulic oil.

XV.Tooling Application:

1.Tooling Material: 42CrMo

2.After quenching and tempering treatment, the die opening and punch tip are fully hardened; Quenching Hardness: HRC46°- 50°.

3.Machine Upper Punch: 1 set(whether segmented is to be determined by the buyer)

4.Machine Lower Die: 1 set

5.Punch Clamping Method: European-type tooling with mechanical quick clamping.Upper/lower tooling segmentation dimensions to be confirmed by the buyer.

XVI.Machine Standard Accessories

XVII.Equipment Acceptance

1 ）The supplier shall complete the installation, commissioning, and self-inspection of the equipment.

2 ）If the Buyer does not submit a written objection regarding the quantity or quality of the equipment to the Supplier within ten days from the completion of installation and commissioning, the equipment under the contract shall be deemed to have met the contract objectives and be confirmed as accepted.

3 ）The Supplier shall dispatch personnel to the equipment location for inspection within 5 working days upon receiving written notification from the Buyer that the equipment quality does not conform to the agreement. The Buyer shall actively provide assistance.

4 ）If the test acceptance process is interrupted due to failures in on-site auxiliary facilities (power supply, surrounding environment, etc.) or environmental conditions not meeting the normal working requirements of the equipment, the Buyer shall immediately undertake repairs to ensure the conditions for normal equipment operation.

5 ）During the acceptance process, if the equipment is found to be short-supplied, damaged, or not conforming to the contract terms and quality standards, the Supplier shall be responsible for making up the shortage or providing replacements. All costs arising thereof shall be borne by the Supplier.
